Author Subject: throttle cable pic
jord294

Seasoned Pro

Location: somewhere in north wales

Registered: 09 Nov 2009

Posts: 3,110

Status: Offline
Post #1

hi guys

has anyone got a pic of the route of the longer type throttle cable for the gti6, which is supposed to run over the rad please?

especially pics of any points at where the cable should be fastened. as i have a metal 'L' shaped bracket on my cable, but for the life of me, i have no idea where it might go

cheers Thumbs up

________________________________________

FRESHLY RE-FURBISHED GTI BEAMS
FITTING AND LOWERING AVAILABLE.
ALL AXLES BUILT USING GENUINE PEUGEOT PARTS

IF I'M NOT HERE, IT ONLY MEANS ONE THING.... I'M SOMEWHERE ELSE!
Posted 1st Feb 2010 at 18:01
Profile
cosmic spanner

Moral objector

Location: North London

Registered: 11 Oct 2004

Posts: 10,399

Status: Offline
Post #2
My ph2 used to have that setup clipped to the top of the rad, but I can't find any decent pics sorry Sad



As you're looking at the engine bay, the cable goes down the left hand side of the engine mount/cradle (ISTR it attaches to the engine mount area maybe that's what the bracket you have is for) then curls round runs along the top of the rad (clipped in by P clips to the lip of the top edge of the rad) then round towards the battery box, then round on itself again before it gets to the throttle body. Some tight bends in it and therefore places where it could stick/snag..

So most people (and ISTR the path on later cars) is to go in an S - curve round by the PAS pump/bottle area, over the cam cover and back round again to the throttle body. Like this:



If this helps at all!

________________________________________

Democracy is two wolves and a lamb voting on what to have for lunch..
..Liberty is a well-armed lamb contesting the vote.

Project é - my 306 project thread.
Posted 1st Feb 2010 at 20:06
Profile
jord294

Seasoned Pro

Location: somewhere in north wales

Registered: 09 Nov 2009

Posts: 3,110

Status: Offline
Post #3

thanks for that.

but could do with a better pic

i have the bracket which mounts to the engine mount, but i have an 'L' shaped bracket which is on the throttle cable and looks like it should fasten to by the battery box Confused

the cable has a rubber sleeve almost on the straight before it goes to tb. how is it held on the bracket which is bolted to the head ?

even looked on service box, but no luck

cheers

________________________________________

FRESHLY RE-FURBISHED GTI BEAMS
FITTING AND LOWERING AVAILABLE.
ALL AXLES BUILT USING GENUINE PEUGEOT PARTS

IF I'M NOT HERE, IT ONLY MEANS ONE THING.... I'M SOMEWHERE ELSE!
Posted 1st Feb 2010 at 21:17
Profile
cosmic spanner

Moral objector

Location: North London

Registered: 11 Oct 2004

Posts: 10,399

Status: Offline
Post #4
Not sure if it clips to the battery box, or just curves around there, from memory most of the clips were plastic and either tie it to other pipes or cables. I don't remember an L shaped bracket. Unsure

jord294 wrote:
the cable has a rubber sleeve almost on the straight before it goes to tb. how is it held on the bracket which is bolted to the head ?

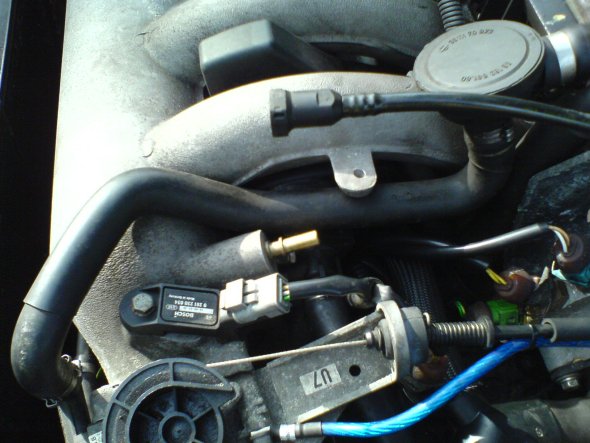

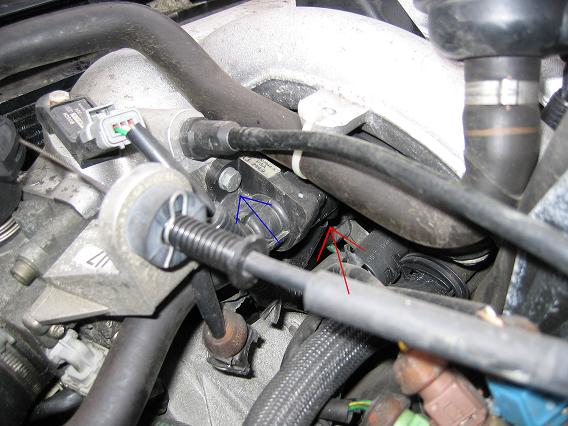

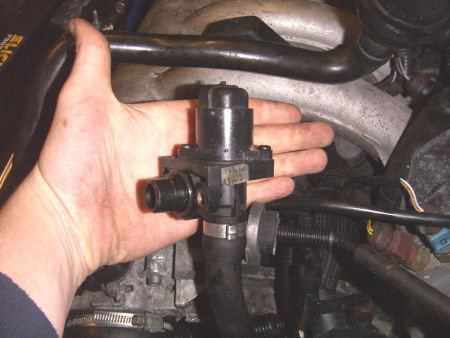

Not sure what you mean.. I've nicked some pics from various FAQs (none on the throttle cable, but of nearby areas) -







________________________________________

Democracy is two wolves and a lamb voting on what to have for lunch..
..Liberty is a well-armed lamb contesting the vote.

Project é - my 306 project thread.
Posted 1st Feb 2010 at 21:46
Profile
fletch

Track Head

Location: The nearest Shell garage

Registered: 12 Jun 2004

Posts: 12,273

Status: Offline
Post #5
I think he is talking about the plastic bracket in the first picture you posted. If you follow the cable back from the TB upward, you can see the bracket attached to the head. This is a simple plastic clip that goes round the cable.
Posted 1st Feb 2010 at 21:46
Profile
jord294

Seasoned Pro

Location: somewhere in north wales

Registered: 09 Nov 2009

Posts: 3,110

Status: Offline
Post #6
fletch wrote:
I think he is talking about the plastic bracket in the first picture you posted. If you follow the cable back from the TB upward, you can see the bracket attached to the head. This is a simple plastic clip that goes round the cable.


just a clip Happy

cheers.

________________________________________

FRESHLY RE-FURBISHED GTI BEAMS
FITTING AND LOWERING AVAILABLE.
ALL AXLES BUILT USING GENUINE PEUGEOT PARTS

IF I'M NOT HERE, IT ONLY MEANS ONE THING.... I'M SOMEWHERE ELSE!
Posted 1st Feb 2010 at 21:53
Profile
rudolf

Seasoned Pro

Location: Skelmersdale

Registered: 07 Apr 2004

Posts: 2,769

Status: Offline
Post #7
You will see a tab on the side of the battery box with a hole which is where you bolt the cable to.

What make of cable did you get?

________________________________________

S Reg Diablo standardsSpec SORNED
R Reg Nile standard spec written off then repaired
X Reg Astor in need of TLC
R Reg Nile to restore
Set of Lions to fit.
Posted 2nd Feb 2010 at 01:00
Profile
jord294

Seasoned Pro

Location: somewhere in north wales

Registered: 09 Nov 2009

Posts: 3,110

Status: Offline
Post #8
rudolf wrote:
You will see a tab on the side of the battery box with a hole which is where you bolt the cable to.

What make of cable did you get?


have you got a pic please ?

it's the original phase 2 cable

________________________________________

FRESHLY RE-FURBISHED GTI BEAMS
FITTING AND LOWERING AVAILABLE.
ALL AXLES BUILT USING GENUINE PEUGEOT PARTS

IF I'M NOT HERE, IT ONLY MEANS ONE THING.... I'M SOMEWHERE ELSE!
Posted 2nd Feb 2010 at 01:17
Profile
rudolf

Seasoned Pro

Location: Skelmersdale

Registered: 07 Apr 2004

Posts: 2,769

Status: Offline
Post #9
jord294 wrote:
rudolf wrote:
You will see a tab on the side of the battery box with a hole which is where you bolt the cable to.

What make of cable did you get?


have you got a pic please ?

it's the original phase 2 cable



You may be able to see it here:



________________________________________

S Reg Diablo standardsSpec SORNED
R Reg Nile standard spec written off then repaired
X Reg Astor in need of TLC
R Reg Nile to restore
Set of Lions to fit.
Posted 2nd Feb 2010 at 04:57
Profile
jord294

Seasoned Pro

Location: somewhere in north wales

Registered: 09 Nov 2009

Posts: 3,110

Status: Offline
Post #10

Thumbs up

perfect mate. thanks very much

just need to get hold of a battery cover now

________________________________________

FRESHLY RE-FURBISHED GTI BEAMS
FITTING AND LOWERING AVAILABLE.
ALL AXLES BUILT USING GENUINE PEUGEOT PARTS

IF I'M NOT HERE, IT ONLY MEANS ONE THING.... I'M SOMEWHERE ELSE!
Posted 2nd Feb 2010 at 09:48
Profile
